The high power adjustable switching power supply is perfect for the purpose of laboratory work. The topology used to design the system is switching topology – half controlled bridge.
Written and Submitted by: Dhrubajyoti Biswas
Warning: The following circuit design works with a direct 220 V Mains AC without any isolation at the input side, therefore it is extremely dangerous to touch the circuit in an open and uncovered condition. Extreme caution is advised while testing this circuit, and it may be strictly not recommended for the newcomers. Also, this circuit was contributed by an external author, therefore the author of this website takes no responsibility for the working performance of the circuit.
Using IC UC3845 as the Main Controller
The switching supply is powered with IGBT transmitters and is further controlled by UC3845 circuit.
The mains voltage goes straight through the EMC filter which is further checked and filtered on C4 capacitor.
As the capacity is high (50 amps), the inflow in the limiting circuit with Re1 switch and also on R2.
The relay coil and fan, taken from AT or ATX power supply is powered from 12V.
The power is obtained via the resistor from 17V auxiliary supply.
It is ideal to select R1 so that the voltage at the fan and the relay coil limits to 12V.
The auxiliary supply on the other hand uses TNY267 circuit and R27 facilitates protection from under-voltage of auxiliary power.
The power will not turn on if the current is less than 230V. The UC3845 control circuit results to 47% duty cycle (Max.) with the output frequency of 50 kHz.
The circuit is further powered with the help of the zener diode, which actually helps to reduce the supply voltage and even helps to shift the UVLO threshold of lower 7.9V and upper 8.5V to 13.5V and 14.1V respectively.
The source initiates the power and starts working on 14.1V. It never goes below 13.5V and further helps to protect IGBT from desaturation.
However, the original threshold of UC3845 should to set as low as possible.
The MOSFET T2 circuit controls, which helps to make Tr2 transformer work offers floating drive and galvanic isolation for the upper IGBT.
It is through the forming circuits of T3 and T4 that it helps to drive T5 and T6 of IGBT and the switch further rectifies line voltage to Tr1 power transformer.
As the output is rectified and reaches an average, it is smoothed by L1 coil and C17 capacitors. The voltage feedback is further connected from output to the pin 2 and IO1.
Furthermore, you can also set the output voltage of power supply with P1 potentiometer. There is no need for galvanic isolation of feedback.
It is because the control circuit of this adjustable SMPS is connected with the secondary SMPS and leaves no connection with the network.
The current feedback is passed through the current transformer TR3 right onto 3 pin IO1 and the overcurrent protection threshold can be set using P2.
12V input supply may be acquired from an ATX power supply

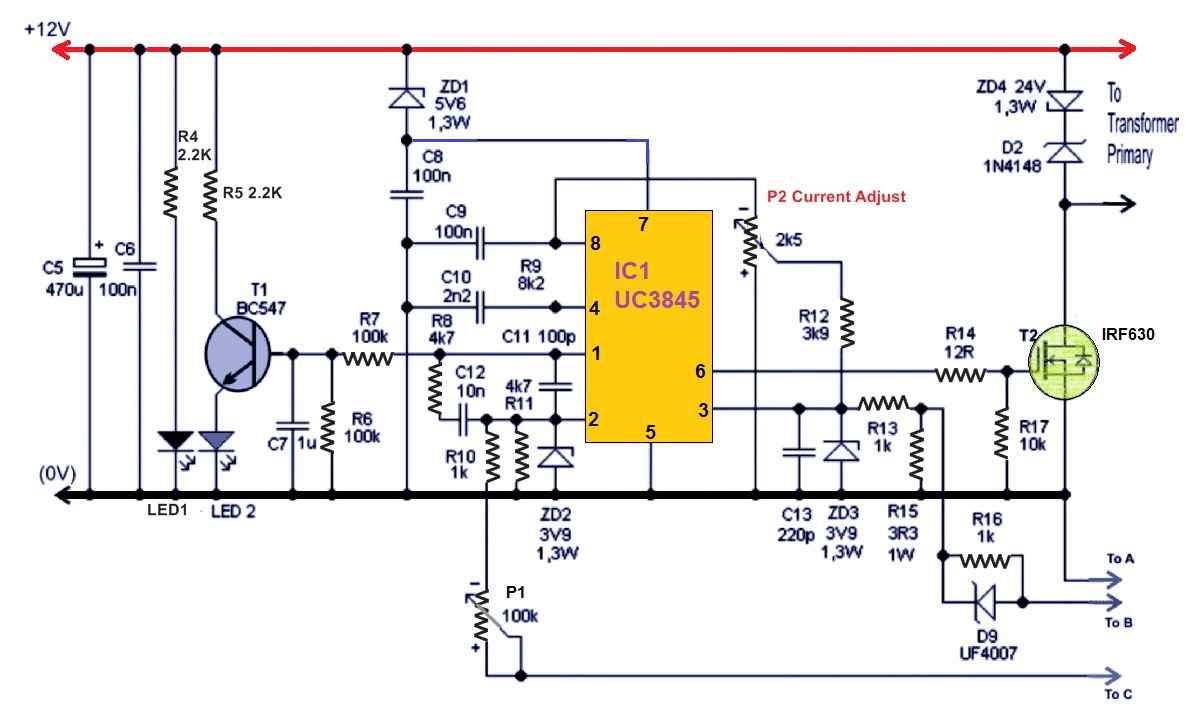

The Controller Stage Schematic
The IGBT Switching Stage
+U1 and -U1 may be derived from mains 220V input after appropriate rectification and filtration
Using Heatsink for the Semiconductors
Also, please remember to place diodes D5, D5 ', D6, D6', D7, D7 ', transistors T5 and T6 on heat sink along with the bridge.
Care should be taken to place snubbers R22 + D8 + C14, capacitors C15 and diodes D7 close to IGBT. The LED1 signals the operation of the supply and LED2 signals the error or the current mode.
The LED glows when the supply has ceased to work in voltage mode. When in voltage mode, the IO1 pin 1 is set to 2.5V else it usually has6V. LED light is an option and you may exclude the same during making.
How to Make the Inductor Transformer
Inductance: For power transformer TR1, the transformation ratio is around 3:2 and 4:3 in primary and secondary. There is also air gap in the ferrite core which is EE shaped.
If you are looking for to wind all by yourself, use a core as it is in an inverter which should size around 6.4 cm2.
The primary is of 20 turns with 20 wires with each having diameter measuring 0.5mm to 0.6mm. The secondary 14 turns with 28 diameters is also of the same measurement like that of primary. Moreover, it is also possible to create windings of copper strips.
It is important to note that application of single thick wire is not a possible idea because of the skin effect.
Now since the winding is not required, you may wind the primary one first followed by secondary. Tr2 forward gate driver transformer possesses three windings having 16 turns each.
It is by using three twisted insulated bell wires that all windings has to be wounded at once leaving any air gap at the wound of the ferrite core.
Next, taking the main power supply from AT or ATX power supply unit of a computer with the core section of around 80 to 120mm2.
The current Tr3 transformer is of 1 to 68 turn on ferrite ring and the number of turns or size is not critical here.
However, the process to orient the winding of transformers must be followed. Also you need to use double choke EMI filter.
The output coil L1 has two parallel inductors of 54uH on iron powder rings. The total inductance is finally 27uH and the coils are wounded by two magnetic copper wires of 1.7mm in diameter, which makes the total L1 cross section to approx. 9 mm2.
The output coil L1 is attached to a negative branch which results no RF voltage in the cathode of diode. This facilitates mounting the same in heat sink without any insulation.
Selecting the IGBT Specs
The max input power of the switched power supply is around 2600W and the resultant efficiency is above 90%.
In switching power supply, you can use STGW30NC60W IGBT type or you can also use other variants like STGW30NC60WD, IRG4PC50U, IRG4PC50W or IRG4PC40W.
You can also use a fast output diode having adequate current rating.
In the worst case scenario, the upper diode gets an average current of 20A while the lower diode in similar situation gets 40A.
Thus it is better to use upper diode half-current than the lower one.
For upper diode, you can use, either HFA50PA60C, STTH6010W or DSEI60-06A else two DSEI30-06A and HFA25PB60.
For lower or bottom diode you can use two HFA50PA60C, STTH6010W or DSEI60-06A else four DSEI30-06A and HFA25PB60.
It is important that the diode of the heat sink must lose 60W (approx.) and loss in IGBT may account to 50W.
However, it is quite hard to ascertain the loss of D7 since it is dependent on Tr1 property.
Moreover, the bridge loss may account to 25W. The S1 switch enables shutdown in standby mode primarily because of the frequent mains switching may not be proper, specifically when using it for laboratory.
In the standby state, the consumption is around 1W and S1 can be skipped.
If you are looking to construct a fixed voltage source of supply, it is also feasible but for the same it is better to apply transformer ratio of Tr1 for maximum efficiency, for instance, in the primary use 20 turns and in secondary use 1 turn for 3.5V – 4V.

Hell sir,
thank you for sharing this diagram , it will be helpfull for me and will try to make it.
one question sir, can i add pfc(power factor coefisien) in this diagram? how to add the pfc component? thank you
Hello Del,
Please see the block diagram in the following article, it shows you how to combine a PFC with an SMPS:
https://www.homemade-circuits.com/power-factor-correction-pfc-circuit/
What’s the reason for switching both positive and negative sides of the output transformer primary? I’ve only seen either single ended switching or push´pull switching.
Thanks in advance for your answer.
I need to made a power supply ov 1000v 1 a, wih a smps cicuit, can you help me wiha sche oa a suggestio of how i can build it
an thanks
Marvi
Hi, a 1000V SMPS design is not available with me right now, if I happen to find it, will surely let you know!
Hello Swagatam,I’m planning to bulid this circuit. But the circuit diagram is not clear though, it will be good if you can share me the full circuit diagram in a single sheet. so, it will easy for me to understand and work on it.
Hello viswanathan, it is difficult to fit the entire diagram horizontally on one page, however it is easy to understand how the three diagrams are interlinked. All the relevant connection ends from the first diagram connect with the relevant wire ends of the second diagram
In between the “primary” and “secondary” connections you have to insert the transformer which is shown in the 3rd diagram.
If you are still not sure, let me know, I will try to figure it out for you.
However, please remember that this article was contributed by an external author and I do not have sufficient information about this circuit design, so if you happen to get stuck anywhere, I may not be able to help you out…
Thank you for your reply, swagatam. I get it, but i couldn’t find the EMC filter circuit diagram .
Thank you viswanathan, you are right, the input DC supply configuration to +U1 and -U1 are not shown in the above article.
I will draw it and try to update it in the above article by tomorrow.
Thank you swagatam, it will be a great help for me to built my circuit.
Hi vishwanathan, please try the following design, the EMI filter won’t be required in our initial testing, we can deal with it afterwards.:
https://www.homemade-circuits.com/wp-content/uploads/2024/08/100V-SMPS-soft-start-AC-300V-circuit.jpg
Good day dear Swagatam. I am trying to form a pwm circuit with a 80 volt dc linear power supply and a Schmitt Trigger circuit with mosfet with a uc3825 tex.ins pwm control from 100khz to 1.5 mhz. I have several problems.
1- The 3825 when operated at 1.5 mhz gets super hot and below 900 khz it doesn’t anymore.
2- Instead of supporting the load the power supply loads the mosfets and they overheat, even though the gate voltage is slightly lower than specified.
I can only use the IRF740 mosfet circuit because it doesn’t deform the gate pulse and any other one deforms the pulse even without load.
What could I do, engineer? Can you help me?
Thank you for your attention.
Good day Antonio,
Can you please tell me how much voltage are you using for operating the IC?
Also, please let me know if the IC heats up at 1.5 MHz without its output pins connected to any MOSFET?
I will try to figure it out….
Dear Swagatam. can you design a SMPS for a Tube Amp 12 to 30 volts input and secondary 300 to 450 adjustable @ 500ma I will pay you for your trouble, Await an email soon. Thxs Peter
Hi Peter,
I think you can try the design presented at the end of the following post:
https://www.homemade-circuits.com/half-bridge-mosfet-driver-ic-irs21531d/
Let me know if you have any further questions.
Hello friend!
Very urgently, I will need 65V/23A, with fixed voltage and current.
Could you clarify a few things for me?:
1- if possible, what would be needed to work with this source at 110v and 220v?
2- for the TR1 transformer I intend to use the EE55, should I use the wire size mentioned by you in the text above?
Hello Wandows,
The above SMPS is a complex design, and i do not have the necessary expertise to deal with the specifications and the solutions associated with this design, so i am sorry, I won’t be able to help you with this circuit.
Hello , I’m trying to build the adjustable power supply . kindly help me to understand how to consider power, input current, efficiency when you have just input voltage – 240VAC and output voltage – 50VDC..
Hi, if you are considering an smps design then the calculations can be quite complex and difficult. Currently i do not have any tutorial which explains this concept comprehensively.
Dear Swagatham, I find this circuit very interesting. I am thinking of building it.
On reading carefully, I find “Care should be taken to place snubbers R22 + D8 + C14, capacitors C15 and diodes D7 close to IGBT.”
Why is it so ? Is to avoid any oscillations ?
“Next, taking the main power supply from AT or ATX power supply unit of a computer with the core section of around 80 to 120mm2.” for what ?
Transformer winding section is bit confusing.
” Now since the winding is not required, you may wind the primary one first followed by secondary.” this does not make any sense . What exactly is meant by this > Winding is not required ?
“you may wind primary one first followed by secondary ” Does it mean primary and secondary side-by-side or secondary on top of primary like ordinary transformers ?
It is better to provide
1) Core type
2) Core size
3) Wire size + nos + no of turns for primary
4) Wire size + nos + no of turns for secondary
For example :
TR1
1) Ferrite core EE
2) 6.4Cm2
3) Primary : 0.5mm or 0.6mm , 20 nos , 20 turns
4) Seconday : 28 guage (?) 20 nos , 14 turns
TR2
1) Ferrite core . Type ?
2) Core size ?
3) wire diameter ? 3 nos , 16 turns for all the 3 windins
TR3
1) Core : ferrite ring
2) Core size : not critical
3) Primary : 1 turn , diameter ?, no’s ?
4) Secondary : 68 turns , diameter ? No’s ?
“However, the process to orient the winding of transformers must be followed. Also you need to use double choke EMI filter.? what doe’s this mean ?
“use double choke EMI filter ? for what ? where ?
L1
1) Core : Iron powder ring
2) Core size ?
3) wire 1.7mm
“coils are wounded by two magnetic copper wires of 1.7mm in diameter,”
magnetic copper wire ? what is that ?
is it to make two independent chokes and connect in parallel?
“This facilitates mounting the same in heat sink without any insulation.” does it mean the choke should be mount on a heat sink ?
Dear Suresh,
The snubber network is for protecting the IGBT from spikes.
It seems there are some typos in the explanation. Regarding the ATX power supply, it could be referring to the E cores, which can be salvaged from an old ATX power supply.
This article was not written by me rather was purchased from an external author.
With great difficulty I could contact the original author for the winding details and he gave me the following detail:
“The transformer Tr1, used for switching, is created by winding on two ferrite EE cores. Each core has a 16x20mm central column, giving a total cross-section of 16x40mm, and no air gap is allowed. The primary winding has 20 turns, using 14 wires of 0.5mm diameter. The secondary winding has 6 turns of a copper strip (36 x 0.5mm).
The forward gate-drive transformer Tr2 is designed to minimize stray inductance. It has a trifilar winding with three twisted insulated wires of 0.3mm diameter, each with 14 turns. The core is made of H22 material, and the middle column has a 16mm diameter with no gaps.
The current sensing transformer Tr3 is made from an EMI suppression choke on a toroidal core. The original winding with 75 turns of 0.4mm wire serves as the secondary, and the primary has just 1 turn. It’s crucial to maintain the polarity of all transformer windings as indicated in the schematic.
The inductor L1 uses a ferrite EE core with a 16x20mm central column. It has 11 turns of a copper strip (36 x 0.5mm), and the magnetic circuit’s total air gap is 10mm, resulting in an inductance of approximately 12uH”
Dear Swagatham, This is really great and kind of you. I need to see if I can purchase the cores. It may take a few days to collect these special materials.
Thank you once again. rgds
Thank you dear Suresh,
However, please proceed with caution with this project since I do not have any expertise with the above SMPS concept and if you run into any problems then I may not be able to solve your problem.
Sure, Thank you.
Hi Mr Swagatam;
After the accidental short circuit, the primary side of my 72V battery charger is out of order. I think UC3548 is defective. It is possible to test the circuit by using PIC programmed IC or 5555 IC insted of UC3845?
Hi Suat,
I don’t think UC3548 can be replaced with an Arduino or IC 555.
However a good 84 V power supply can be built using discrete parts and transistors…provided you have an appropriate step down transformer for this…
HI, I WOUNDER WHERE IS THE OUT PUT , ISI T AFTER TR1 OR AFTER 3-60V OR AFTER TR2 ? BEST WISHES
It is after 3-60V
If I need to increase output current of SMPS , WHICH components should I change is it the transformer only or the output capacitor and diode
You will have to upgrade the transformer wire thickness, the IGBT rating, L1 rating, and the diodes D5, D6
Hi Swagatam, Thanks for your usefull diagram. I am trying to make it and i have some question for this.
1. Where i will connect AC 220 Volt ?
2. I need output voltage is 60 V DC, so where i can adjust the output voltage in your circuit?
3. is it necessary to use regulated DC to converter to output in your circuit ?
4. How can i get 12 DC Volt supply from your circuit ?
It will be highly appriciated to receive your response on the same.
Hi Md. Shahinur,
This is not my circuit, it was contributed by an external author.
1) you will have to rectify the 220V AC into a 310V DC through a 20 ampere rectifier diode and 10,000uF 400 V filter capacitors and apply the Dc across the +U1 and -U1 terminals of the circuit.
2) P1 can be used to adjust the output voltage
3) 12V regulated supply will be needed to power the IC.
4) you can get it by adjusting P1.
Dear MR. Swagatam,
Thanks for your reply. really i am very happy to got your reply and valuable information. Now i will go to complete the circuit.
Can you help to share, How will i get the PCB and all component ?
You are most welcome Md. Shahinur!
I wish you all the success, however I have no idea from where the PCB for this project can be obtained. The components can be obtained from any online electronic spare part store.
Ok thanks, can u share the diagram to rectify the 220V AC into a 310V DC through a 20 ampere rectifier diode and 10,000uF 400 V filter capacitors. It will be very usefull to me. Also I will be in toch with you for the project if need. pls help me.
You can try the following diagram
The filter coil can be constructed over any large size torroid ferrite core. Wind two separate 25 turn coils on the same core using 2 mm super enameled copper wire.
This project is hugely complicated and is recommended only for those engineers who are well well versed with the construction of SMPS circuits and SMPS transformers. A smallest of mistake can result in fire or explosion and loss of money.
So please proceed with caution.
https://www.homemade-circuits.com/wp-content/uploads/2023/05/SMPS-bridge-circuit.jpg
Thanks for your information
Excuse me for the question in the first diagram it shows how to connect the other stage where the source comes from, but it says that it must be connected to the primary transformer but if I look at the other stage of the source it shows 4 splices it says to secondary#1 and tosecondary#2 it I don’t understand if the first stage only has 2 connections, the Sunday stage shows four, how did you splice them then, because the rest if their connections to A to B to C coincide, can you please help me, thanks, I only speak Spanish, sorry.
You can see the drawing of the transformer in the third figure. This transformer has one primary and two secondaries. This transformer is supposed to be connected between the two schematics of the SMPS. In the first schematic the two wires indicated as primary goes to the primary of the transformer, and the four wires of the next diagram indicated as secondaries connect with the secondary wires of the transformer.
Per sir smd components use karke to ho sakta ha na ?
Neeraj, next time please type in English.
You cannot use SMD parts for the transformer, MOSFET, coils, heatsinks, which will consume maximum space so using SMD parts for resistors and capacitors will not help to save too much space..
Sir kya 24v 15amps ka SMPS ban sakta ha bilkul compact size me ? With less components??
Neeraj, a 15 amp SMPS cannot be built with little components and a compact size.
Hi, after I make a power supply circuit how do I figure out how much voltage and or current I can pass through the circuit before it breaks or preforms unintended operation?
All circuits have a specific safe working voltage range, and you have to supply a voltage which is within this voltage range. Current is not crucial, once the correct voltage is supplied the current will automatically adjust as per the load. Just make sure the current is sufficiently high. For example if the load needs 1 amp current, your input supply must have a current higher than one amp.
Thank you Swagatam. Yes, however when connected to the wall I believe the device will experience intermittent voltage and or current surges from things such as nearby lightning strikes. I’m sure there are other ways current and voltage surges happen though I am not aware of how exactly. I am curious on the level or how much current or voltage surges the power circuit can endure both transient and steady state (voltage & current). Would you know how to figure out those limit values?
You are welcome Yuuma,
Today the majority of power supplies and gadgets use SMPS based power supply. SMPS have a wide input range, right from 100 V to 290 V RMS. Normally the input voltage fluctuates between 200 V and 250 V, so according to me the SMPS based gadgets are absolutely safe from normal fluctuations. However, if there’s a lightning strike then I don’t think it can be stopped by any form of protection….no protection can stand a lightning strike.
is it possible current adjust also with this circuit?
Current is controlled by TR3. The number of primary turns can be adjusted to adjust the current.
i need schematic for 84 to 72 input from battery and output 12v 15amp
Hello. I have a question in your zero to 100 volt 50 amp smps on your gdt you do not show them out of phase on the secondary is this correct or is that just a typo. Thank you Bart
Are you referring to the the black dots on the TR1 winding which indicate the winding direction?
Hi
i want to reduce the voltage to maximum 70v and current to 10A.
what changes should i make ? can the igbt circuit be removed ?
Hi, I cannot recommend changing anything in the design, which might otherwise cause unpredictable results.
Спасибо за схематику, мне надо собрать инвектор с сыходом 170в 11-12амп. Думаю ваша схема справится и игбт от 20 и да 30амп.
Hi,
My name is Raju Saha, and I am From Kolkata, West Bengal. I am not from the Electronics Field, though I love to lean this, and enhance my knowledge regularly by studying Youtube Video, and Websites like this.
Even right now I am making an circuit designed in your website, for an application I want to make.
I would like to thank you a lot, for making this website, and help the people like us, to get knowledge. this website is pretty good informative and elaborate.
I work in the Fire alarm and security system field, where I use Honeywell or Eaton products regularly.
Why I write this to you, is the reason, that I always wonder to know, how the addressable devices are made.
There is a Fire Alarm System called addressable fire alarm system. Where against a device address a Text can be written on the main panel against that address, through software provided by OEM, and when that particular device sense fire, it shows the location text.
I have opened so many of devices, but not able to find which IC or Chip they use to store that address.
Actually based on that, I would like to develop few products, which the foreign companies sale in India by importing the product. This let me to think most often, that don’t we have engineers in our country who also can make this types if addressable intelligent devices?
Hope fully we have, but probably those engineers do not know what to make.
If you can help me to develop this kind of products. I can help you by providing the information, what you need. If require, I can send you a small system to you.
Waiting for your reply.
Thanks & Regards
Raju Saha
9038089813 / 9123033247
rajusahantc@gmail.com
Hi Raju, thank you for visiting this site, and I appreciate your interest in the field of electronics.
The alarm system that you have mentioned probably uses a microcontroller system which are complex circuits. A microcontroller systems requires programming, which in turn requires special knowledge and expertise. Unfortunately my knowledge of micrococntrollers is not good so it can be difficult for me to help you in this regards. If I find somebody else who can do it for you, will surely let you know.
i have built the whole circuit but the problem is that the igbt and by329x gets fried(shorted) and one another note i have used by239 instead of by329
There are so many parts in the circuit, even if one part is wrongly connected something may go wrong and something may burn…it is difficult to troubleshoot your circuit without practically looking into it.
Hello there,
In the circuit, it is shown that the UC3845 IC will be fed with 12 volts. At terminal 7, the serial 5V6 zener does not oscillate 3845. The supply must be at least 15 volts. He has tried.
have a nice day
OK, thank you for the suggestion, I hope people will take a note of it!
hi.. do you have llc resonant smps design in 5kva vout about >150v? I still learn it and I am interesting to discussing with you, thanks
Hi, I haven’t yet investigated an LLC resonant SMPS concept, if possible I may check it out soon and present a suitable circuit in this blog.
Hi sir,
I used to see the website for more than a day… Bcoz, the contents is so huge, innovative, workfull, and easy to build..
Sir, iam a student of diploma in EEE and
i don’t have sufficient funds to buy a commercial e bike controller.. so, i decided do on my own 1kw bldc motor controller…
Could u plz make a circuit with fully functional as the commercial once……
Thank you Sai, you can try the following concept:
https://www.homemade-circuits.com/make-this-electric-scooterrickshaw/
There are plenty of such BLDc controller designs online that you can try.
Hi sir,
This website has huge information…..
Publishing as open source project is so great……
Every circuit from u r side is useful….
Thank you Sai.
hi, really great
could u pls help me to make 5v 70 amp SMPS for pixel led…..
Hi, thank you, 70 amp is a very high current….. presently I do not have the design, will try to find it and update it for you!
muy buenas, en donde consigo este circuito ensamblado.
y necesito un circuito UPS con entrada de 12v y salida de 48v 50 amperes para moto eléctrica
Thank you and glad you liked the concept, however we are Sorry, we don’t sell assembled kits in this website.
I want to see BOM file with value and collage.
Hello Mr Swagatam, do you have any article on the use and application of the UC3845 controller ic? If yes, please send a link.
If no, then what does deadtime mean in the use of the ic seeing that it is not a half or push pull controller, therefore, it has only one output?
Can I tie the comparator pin with a resistor to the feedback pin, just in case I don’t want any compensation circuit?
Victor, you can check out this datasheet for similar details:
https://www.ti.com/lit/ds/symlink/uc3845.pdf?ts=1604929742176&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FUC3845
Hey! My friend, I want to DIY an AC transformer with an input source of 70V500W and a DC linear regulated adjustable power supply with an output of 60V10A. Is there any good solution to learn from?
Sure friend, you can try the concept presented in the following article, connect the 10 to 12 of these ICs in parallel (over a single common heatsink)
https://www.homemade-circuits.com/0-60v-lm317-variable-power-supply/
In this “Adjustable 0-100V 50 Amp SMPS Circuit”
Tr1=6.4cm2(E70 core may work)-i know the size
Tr2=?(i don’t know core size)
Tr3=?(idont know core size
The article was contributed by an external author, so providing suggestions may not be possible for me.
Hi, I would like to make this 0-100 Volt 0-50 A. power supply. Did anyone do it? It works ?
Can you give me some advice on the realization? For the meantime I made the regulation card with UC3845 up to the gate transformer. I see with the oscilloscope the two commands of the 50 Khz Duty Cycle square wave gate at 48%.
Now I have to think about the IGBT with its snubber and then the transformer, I do it I already have the two semi nuclei to E.
But is it protected against short circuit? With Any output voltage?
Thanks Giovanni Verona Italy
Hi, It is a tested design by some other author, but since it was not designed me providing all the minute details will be difficult for me, I am sorry about that!
hi dear sir i preferably need a power supply circuit for handling a car’s cooling fan by one SMPS circuit with voltage 14 v and a magnitude current as big as 15 current
please introduce an circuit related
best regards sincerely yours sedigh hosein
Hi Sedigh, sorry I don’t have this circuit, but it may be easily available ready made at less than $20
hi, can you help me 1 complete circuit diagram?
My input voltage is 100-150VDC (my solar system consists of 3 plates, each plate voltage varies between 38-50VDC)
I want the desired output voltage to be 15VDC (if possible, the better)
Very grateful.
Hi, what is the current required for the 15V, and for what purpose? You can actually get it from one of the panels through a LM317HV voltage regulator
Dear Sir,
the schematic that you share is very interesting, especially the power capable of up to 30 Amperes and the voltage can be set to 100 volts. availability of ferrite transformers that cannot be obtained. For power capable of up to 5KW what size is the fair rite transformer on the market. actually I need a 30 Ampere smps continue with a voltage of 160 Volts, used for AM Transmitters.
maybe you have the SMPS reference and schematic that I need. can the schematic above be developed, just change the coil ratio TR1 and replace the power mosfet
Thank you for your help.
Best regards,
Widiatmono
Thank you Hersan,
Frankly I am not an expert with SMPS transformers, however I have recently published a tutorial on SMPS transformer calculation which might help you to get some insights. Here’s the link for it:
https://www.homemade-circuits.com/how-to-design-and-calculate-ferrite-core-transformers-for-inverters/
Hai tuan swagatam!saya tertarik dengan proyek ini.apakah ini bisa buat welding juga?terimakasih
Hai Ismail, ya Anda bisa menerapkan sirkuit untuk pengelasan juga!
Hi , sir..
Is the basis of this scheme , Danyk’s scheme ??
Hi Dennis, I have no idea, as it was contributed by another person.
Dear Sir,
I need a circuit 0-100Vdc (1 Volt steps programable) by PC or arduino ….
Could you help me ?
Turgay, sorry, I do not have an Arduino design at the moment!
Which software can i use to simulate this circuit?
Hi
Swagatam! Really appriciate your work in electronics.
I need a circuit which can charge single battery of 48V with 50 Amp. Should i need Constant current source for this?
Can you recomand any such circuit please.
Thanks in Advance
Joshi
Thank you Joshi, yes it has to be a current controlled battery charger which simply means that the source should be rated at the specified amount of current, if a transformer is used then its rating just needs to be as per the battery limitation.
for a 48V, 50AH battery you will require a 48V/6 amp transformer, after rectification its output should reach at around 56V which is the right level for charging a 48V battery.
you can try the first design from the following article:
https://www.homemade-circuits.com/2012/08/make-this-48v-automatic-battery-charger.html
it is designed to automatically cut off when the battery reaches 56V (full charge level)
hi,is it possible for you to give some info regarding the main power requirement for this project,i.e, common mode choke size/rectifiers/electrolytics capacitance/inrush curent limiter as you do not mention enything on this point!
thank you for your time…
Hi, No I won't be able to provide all those details because I have not yet built and experimented with this design practically…
the article was submitted by another author, not me…
Hi Swagatam,
I know this SMPS design is from another author but in your opinion, will it be possible to leave out TR1 altogether and re-size C17 for the higher output voltage?
Hi Kevin, no I don’t think that’s possible because TR1 is the heart of the whole design and is responsible for generating the required high power output
Hi
Do you have any recommendations for a similar smps (0-100v 30A) without any transformer? I’m looking to build a bench transformerless power supply with wide ranging capability?
without a transformer it will be impossible to step down the input 220V to 100V, so I don’t think that’s feasible without a trafo
hi,
i'm trying to do such smps in more simpler way <1kw, can i connect the output of uc3844 directly to GDT transformer? i think it's 1A so at 1:1:1 ratio i shall get about 400ma for each mosfet gate, is that good under 1kw output?, also is the protection with 3.9 zeners a must? can't we relay on resistors voltage deviding? also i did modded the driver for more simplicity but how can i post images here for review?
thanks
Hi, the output configuration will need to be a push pull type or an H-bridge type…by using a single mosfet you might not achieve an efficient response from the output which might lack power.
I won't be able to provide a in-depth analysis of the IC since I have not tested the IC practically….
Hi Swagatam Majumdar,,,,
i overviewed your project (Adjustable 0-100V 50 Amp SMPS Circuit)
i am a engineering student and high current smps is my Final year Project , 50 Amp with regulated voltage.
i want to ask where i have to start??? i want a right and exact path
Hello Sohail,
You can start by first buying the parts, then assemble them on a general purpose PCB….if everything works correctly, then design an appropriate PCB for it and then finalize the design by assembling it on the PCB.
The power will not turn on if the current is less than 230V.???what u mean..current measured in mA or A (ampere ..milli ampere)rating. but u noted V its voltage
pak ada pcbnya tidak
Hi,
I want 12v to 15,20, 25…..48V.
Can I only make circuit using UC3845 and omit second part using transformer?
Can only the first part using UC3845 FULFILL my requirement?
You can also suggest me other less complicated circuit to convert 12v to 15,20, 25…..48V.
Thanks
Hi, you can try the following design instead
https://www.homemade-circuits.com/2014/06/smps-2-x-50v-350w-circuit-for-audio.html
Thanks Sourav, I'll investigate the option and if possible try to upadte the design with this feature.
Whats the resistance on the transformer coils thanks
you man inductance? sorry that is not known to me.
Hello, First off, Thanks for the assume web-side.
If I want to make a fixed output voltage of 40V. should I use 40V ZD instead of P1? and change the Tr1 secondary winding?
Thanks
thanks, first make the circuit as shown, if you succeed only then you can proceed with the proposed idea
Thanks a bunch but Sir, I don't quite understand what you mean by "charging each battery through individual modules, where each module would have the above mentioned fast charger circuitry".
Also, I observed that the circuit in the link you provided is not a multi stage. It is just charge and disconnect when battery is full and then engage charging again when the battery drops below the preset voltage.
Is it possible to make it multi stage?
Thanks once again Sir Swagatam.
Please let me know if there's a way one can make a voluntary contribution to homemade-circuit.
Regards.
It's my pleasure Elias, the second link is not a step charger, it was referred only to show you how the opamp and its associated parts needs to be safeguarded from the high 48V, the earlier link which used 4 opamps is what we need to use for implementing the 3 step charging.
I suggest you to make the following circuit module for each of the batteries, and connect the circuits such that the they are placed in between the supply and the respective batteries.
https://www.homemade-circuits.com/2014/03/fast-battery-charger-circuit.html
however this also means that each of the modules will need separate 14.4V for the intended procedures.
So it would be up to you to decide which option you prefer…the 48V one or by using individual circuits for each of the batteries.
Thank you very much for being courteous, I appreciate your thoughts and your involvement with this site, I do not expect any further contributions other than this:)
You can feel free you ask as many questions as you may want.
Thanks Swagatam for the prompt reply,you're the man. I have studied the circuit carefully, however, I need a few clarification. Fristly, My transformer is 55V rated, meant to charge 48V battery bank. My concern is how the circuit would detect the change (rise) in battery voltage during charging.
Secondly, what are the modifications needed to effect in order to make the circuit work for the intended use. for example, is there need to change the Zener since it is 6V?
Thirdly, my relays have to be rated at 48V. The relay will be energized by the switching signal from the LM324 but the IC is rated at 32V max. That's way too much voltage for the IC to handle. Even the transistors are not spared.
Elias, I would recommend charging each battery through individual modules, where each module would have the above mentioned fast charger circuitry. This can be a little costlier but will produce extremely reliable results.
Because 48V is not a standard value and components rated with this value are not easily available.
For 48V operation you may have to dimension the components around the opamp in the manner shown for these designs:
https://www.homemade-circuits.com/2012/08/make-this-48v-automatic-battery-charger.html
These adjustments proportionately scale down the 48V into the lower levels for the opamp so that the detection range comes within the safe range of the opamp
however there would be no way to learn the state of each of the batteries separately giving rise to inefficient charging of the 16 batteries.
Hi! Swagatam, I appreciate you for all you have been doing here. I have a design challenge and I am hoping that you would assist me. I am currently building a 48V charger for 16 units of 12V 40AH connected in series and parallel. I need a smart circuit to handle the "Bulk State (constant current), the Topping Stage (constant voltage where the charging current is lowered) and the Floating stage (to compensate for self discharge). I have winded the transformer for it, it has 55V output. I need a circuit to continue from where I stopped.
Thank you in anticipation.
Hi Elias, you can try the following concept:
https://www.homemade-circuits.com/2014/03/fast-battery-charger-circuit.html
just make sure the IC gets a 12V stepped down supply from an emitter follower transistor arrangement, or through any other suitable option
however charging batteries in series parallel is never recommended unless an automatic arrangement is included which would take care of each battery individually
Hi! im new in electronics and im interested in building a power supply. as i searched i found some types of half bridge drive power supply. what i cant understand in this type is why there is the need of the two mosfets on the high and low side as i cant see any polarity change in the primary. could you please explain the cycle of working in this circuit? are the two mosfets turned on at the same time or not? and if they are whats the need of the high side one? Thanks and sorry for the too many questions..!
Hi, the two mosfets are configured to conduct together simultaneously…..so that the both the fets become in series for conducting the mains 330V…the series connection could be probably to allow sharing of the relatively higher voltage and enable a safer operation of the high current output stage
This site is awsome! I have some doubts about this project: 1) T1 is a power transformer, right? Can I use one of those power transformers from an ATX power supply? 2) T2 has a toroidal core or am I wrong? 3)T3 has a toroidal core too? What's the cross section size? Thank you!
Thanks!!
1) T1 is a power transformer, and an ATX transformer can be used for this provided the winding specs are exactly identical.
2) TR2 should be wound over any standard EE core assembly, not torroidal type core.
3) T3 could be wound over a T13 torroidal core
I want to know that, is this circuit able to charge a 180 Ah tubular inverter battery?
Can I charge this battery using smps of home computer and one more thing , can a battery be charging while using or discharging?
the above circuit will be able to charge a 180AH,
if your computer smps is able to provide upto 20 amps then you can use it to charge the mentioned battery.
No, it's not recommended to use (discharge) the battery while it's being charged.
