In this article I have explained the circuit details of a couple of very interesting and sensitive RF signal meters, which can be used for measuring the RF strength of the transmitted waves from the RF source without making any physical contacts with the source.
Simple RF Signal Meter using IC 741
A RF signal meter of this form is very helpful for identifying the radiation qualities of directional beam transceiver aerials. This makes it possible for the person to dimension the antenna correctly to have the best transmitting radiation pattern. An additional aerial must be placed close by from the primary transmitting antenna.
The signal received by the second antenna is subsequently provided to a resonance circuit created by L1, L2 and the varicap C2. This allows the meter to be precisely tuned to the specific transmitting frequency which needs to be measured. With the inductance values shown for the coil in the schematic the 'band width' of the meter can be anywhere between 6 and 60 MHz.
The RF signal after this is applied to the diode D1, consisting of a rectifier/demodulation stage. Lastly the signal is directed to the non-inverting input pin#3 of opamp IC1. The gain of this opamp which decides the sensitivity of the 1 mA meter is fine-tuned by the preset P1.
Performance
The working performance of this RF signal meter circuit was tested to be incredibly sensitive, and tremendously selective. A set of headphones could be attached to the output of the opamp enabling the original RF transmission to be examined. The general resistance of the recommended headphone must not be below 2k2 or else that may call for an additional amplification Stage in the design.
Discussing How to to Build a RF Signal Meter

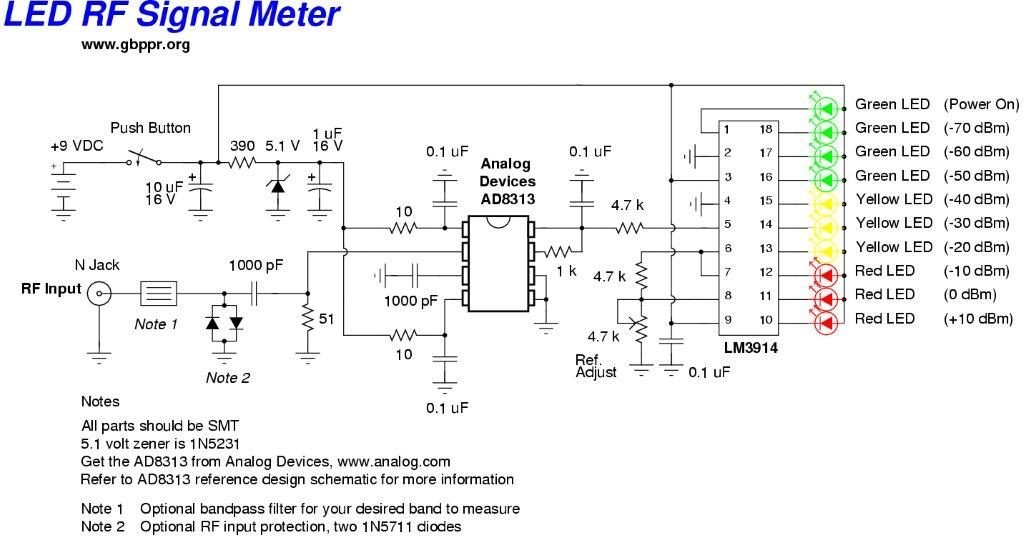

A neat little RF signal meter circuit has been discussed in the following post, which can be used to trace even the minutest RF signals in the ether through an illuminated LED bar graph display. Courtesy: Steven Chiverton.
